On the cord or on the film wrap
Pallet labelling on banding film or stretch wrap
eurapack® offers various solutions for the labelling of pallets. In the case of films, labels can be applied directly onto stretch wrap or a film band, which is applied to your packaged goods with a pallet wrapper.Pallet cord labelling with the bornbinder® system

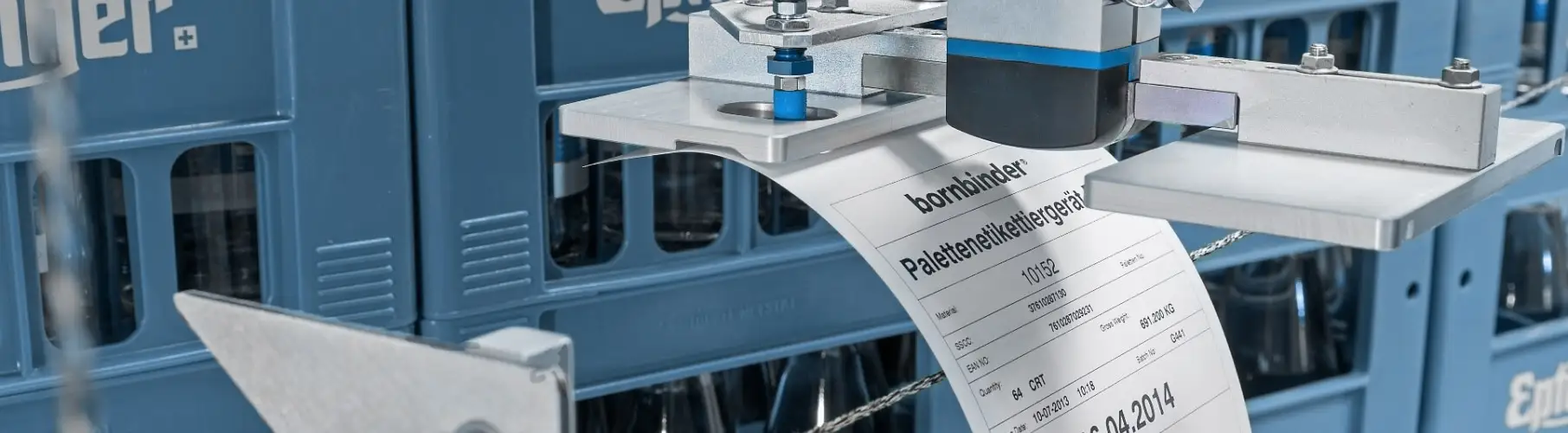

For resource efficient cord labelling, eurapack® uses the PES system of its partner, bornbinder®. Cord labelling ensures rapid labelling of pallets without the need for adhesion to the packaging material.PES cord labelling system
With the pallet labelling system from bornbinder®, pallets can be labelled on up to three sides securely, extremely fast and with clear visibility. The PES consists of a bornbinder® HBX or HBV and a special labelling unit. The labelling unit consists of a cord applicator and the label printer. The labels are applied to the cord by the applicator. This eliminates the need to stick or clip labels onto pallet loads. A unique feature of the bornbinder® PES is that it can be flexibly equipped with a wide selection of label printers according to customer needs.
- "Made in Switzerland" quality
- Professional after sales support from eurapack® and bornbinder®
- Capacity: up to 140 pallets per hour
- Pallet securing and pallet labelling take place simultaneously at a single pallet stop, which saves a huge amount of time
- The bornbinder® PES allows labelling on up to three sides
- The bornbinder® PES ensures low costs for packaging material, while use of the environmentally friendly bornbinder® machine cord which is ideally suited to the machine leads to extremely low-wear operation
- The labels are fixed directly and securely to the cord during cord winding – no stuck-together boxes or damage due to labels sticking to the floor
- The paper labels can be removed from the cord without damage, which allows continued use of the labels and the cord during picking
- Robust, simple and very low-wear design of the labelling unit and the strapper ensures maximum availability
- The label printer can be integrated in the PES exactly according to customer requirements
- The made to measure labelling software guarantees problem-free connection to different production planning and control systems; software and printer service is available through the printer manufacturer
- The cord can be removed as a whole ring and reused for return transport of the empties – environmentally responsible and cuts costs
- Infinitely variable height adjustment allows problem-free adaptation to any stacking height
- The machine can be mounted on any conveyor
- Connected voltage: 3 x 400 V / 50 Hz
- Connected load: 5.0 kVA
- Control voltage: 24 V DC
- Control unit: Siemens CPU 1512SP F-1PN
- Control panel: Siemens KTP700
- Options: retaining device, automatic height adjustment
Our work does not end with delivery to the customer. If required, we ensure that the systems supplied are maintained at the cutting edge of technology. Also that instant help is available for any faults that occur.
You can take advantage of the following services
- Maintenance and modification (conversions/additions)
- Repair and/or replacement of defective modules
bornbinder® PLS with bornbinder® label handling LH – customisable with labels from different manufacturers
To be able to watch the video, the must be activated.
- "Made in Switzerland" quality
- Professional after sales support from eurapack® and bornbinder®
- Capacity: up to 140 pallets per hour
- Pallet securing and pallet labelling take place simultaneously at a single pallet stop, which saves a huge amount of time
- The bornbinder® PES allows labelling on up to three sides
- The bornbinder® PES ensures low costs for packaging material, while use of the environmentally friendly bornbinder® machine cord which is ideally suited to the machine leads to extremely low-wear operation
- The labels are fixed directly and securely to the cord during cord winding – no stuck-together boxes or damage due to labels sticking to the floor
- The paper labels can be removed from the cord without damage, which allows continued use of the labels and the cord during picking
- Robust, simple and very low-wear design of the labelling unit and the strapper ensures maximum availability
- The label printer can be integrated in the PES exactly according to customer requirements
- The made to measure labelling software guarantees problem-free connection to different production planning and control systems; software and printer service is available through the printer manufacturer
- The cord can be removed as a whole ring and reused for return transport of the empties – environmentally responsible and cuts costs
- Infinitely variable height adjustment allows problem-free adaptation to any stacking height
- The machine can be mounted on any conveyor
- Connected voltage: 3 x 400 V / 50 Hz
- Connected load: 5.0 kVA
- Control voltage: 24 V DC
- Control unit: Siemens CPU 1512SP F-1PN
- Control panel: Siemens KTP700
- Options: retaining device, automatic height adjustment
Our work does not end with delivery to the customer. If required, we ensure that the systems supplied are maintained at the cutting edge of technology. Also that instant help is available for any faults that occur.
You can take advantage of the following services
- Maintenance and modification (conversions/additions)
- Repair and/or replacement of defective modules
bornbinder® PLS with bornbinder® label handling LH – customisable with labels from different manufacturers
To be able to watch the video, the must be activated.
Etiketten zur Palettenkennzeichnung
Finden Sie die passenden Etiketten für Ihren Drucker. Unser Sortiment umfasst hier sämtliche gängigen Formate (untere anderem DIN A5, DIN A6).
