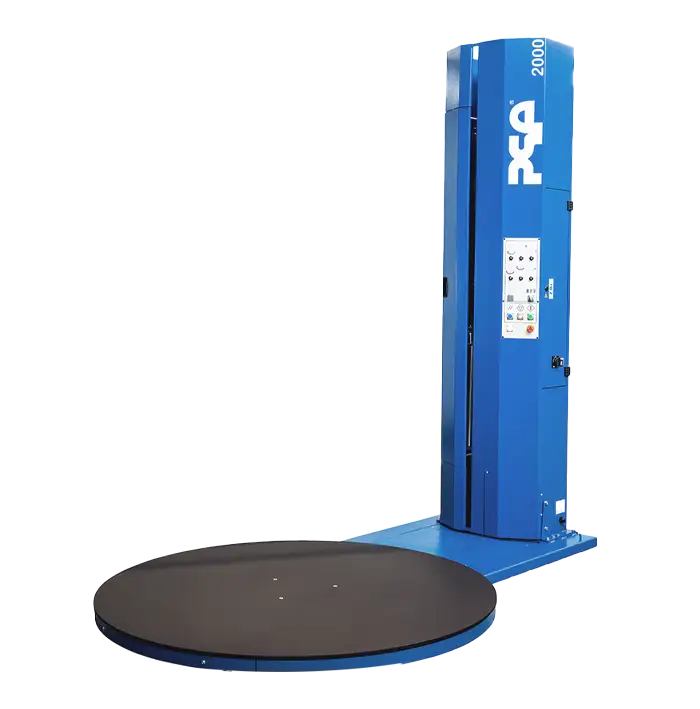

Turntable stretch wrapper epw125

  • Semi-automatic turntable stretch wrapper in column design
  • Mechanical engineering Made in Germany
  • The epw125 allows wrapping of a wide range of packaged goods
  • Automatic wrapping process with three possible wrapping programs (single wrapping, cross wrapping, splash protected)
  • Internal film carriage, all moving parts in the tower
  • Five program memory locations
  • Maintenance and wear-free magnetic particle brake, closed system without friction or loss of braking power
  • Door flap mechanism for even easier film roll changeover at an ergonomic height
  • Flexible applications thanks to easy transport of the machine
  • CE conformity
  • Space saving and easy to transport
  • Simple handling guarantees time savings
  • Inexpensive acquisition costs, minimum setting and maintenance costs
  • The epw125 is the robust convenience model in the epw100 range
  • Digital panel with LEDs and real time display, easy to understand symbols
  • Input blocking via operating manager function
  • Selection of wrapping programs
  • Adjustable speed for turntable, separate for upward and downward movements of the carriage
  • Adjustable speed for carriage, separate for upward and downward movements
  • Electronically controlled smooth start-up and deceleration of the turntable with stop in home position
  • Precisely adjustable number of bottom, top and final wraps
  • Easily adjustable string system for wrapping reinforcement at the pallet base
  • Infinitely adjustable film overlapping separately for upward and downward movements
  • Film stretching at four different pallet positions for custom adjustment to the packaged goods
  • Adjustable overlapping at the top
  • Height scan by photocell
  • Indicator light for voltage supply
  • Single wrapping program
  • Cross wrapping program
  • "Splash protection" program with stop for manual top sheet application
  • Output range: up to max. 20 pallets per hour
  • Connected load: 230 V AC, 50/60 Hz, single-phase
  • Turntable diameter: 1650 mm
  • Max. pallet dimensions: 1100 x 1200 mm
  • Max. loading weight: 2000 kg
  • Max. pallet height: 2400 mm
  • Pre-stretching system: no pre-stretching system
  • Options:
    • Ramp
    • Base intake frame
    • Manual top film dispenser
    • Turntable enlargement
    • Tower lengthening
    • Photocell to detect black products
  • Semi-automatic turntable stretch wrapper in column design
  • Mechanical engineering Made in Germany
  • The epw125 allows wrapping of a wide range of packaged goods
  • Automatic wrapping process with three possible wrapping programs (single wrapping, cross wrapping, splash protected)
  • Internal film carriage, all moving parts in the tower
  • Five program memory locations
  • Maintenance and wear-free magnetic particle brake, closed system without friction or loss of braking power
  • Door flap mechanism for even easier film roll changeover at an ergonomic height
  • Flexible applications thanks to easy transport of the machine
  • CE conformity
  • Space saving and easy to transport
  • Simple handling guarantees time savings
  • Inexpensive acquisition costs, minimum setting and maintenance costs
  • The epw125 is the robust convenience model in the epw100 range
  • Digital panel with LEDs and real time display, easy to understand symbols
  • Input blocking via operating manager function
  • Selection of wrapping programs
  • Adjustable speed for turntable, separate for upward and downward movements of the carriage
  • Adjustable speed for carriage, separate for upward and downward movements
  • Electronically controlled smooth start-up and deceleration of the turntable with stop in home position
  • Precisely adjustable number of bottom, top and final wraps
  • Easily adjustable string system for wrapping reinforcement at the pallet base
  • Infinitely adjustable film overlapping separately for upward and downward movements
  • Film stretching at four different pallet positions for custom adjustment to the packaged goods
  • Adjustable overlapping at the top
  • Height scan by photocell
  • Indicator light for voltage supply
  • Single wrapping program
  • Cross wrapping program
  • "Splash protection" program with stop for manual top sheet application
  • Output range: up to max. 20 pallets per hour
  • Connected load: 230 V AC, 50/60 Hz, single-phase
  • Turntable diameter: 1650 mm
  • Max. pallet dimensions: 1100 x 1200 mm
  • Max. loading weight: 2000 kg
  • Max. pallet height: 2400 mm
  • Pre-stretching system: no pre-stretching system
  • Options:
    • Ramp
    • Base intake frame
    • Manual top film dispenser
    • Turntable enlargement
    • Tower lengthening
    • Photocell to detect black products
